Lighting for business
Cu-Beam™ suspended lights
CSYS™ task lights

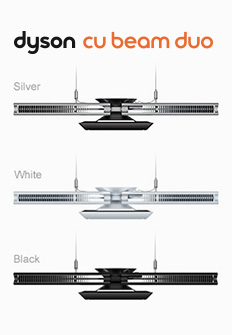

Combined up and down light with full flexible control.
Alters to suit changing needs throughout the day.

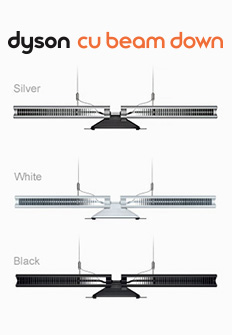

Suspended down-light with a controlled pool of powerful illumination.
Ideal for lighting task surfaces, such as meeting tables and office desks.

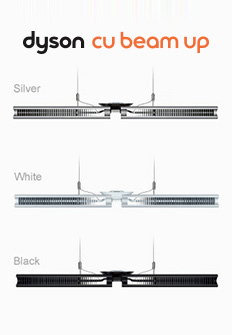

Suspended up-light with an ultra-wide distribution of powerful illumination.
Optimal lighting for open spaces, such as atriums, foyers and offices.
Follow the link below for useful resources
A dedicated Dyson expert
will contact you within one business day.
Face to face meeting
with demonstration.
Get a tailored quote
specific to your business needs.
Speak to a Dyson expert
Heat pipe technology
Cu-Beam™ suspended lights come equipped with an effective cooling system. Heat is transferred away from the light source and dissipated along the wings.
Custom-engineered lens
A single light source allows accurate optical control. Precisely calculated optical geometry directs light without compromising output.
Single high-power LEDs
Because of Heat pipe technology, Cu-Beam™ suspended lights are able to use single, high-power light sources.
Six vacuum-sealed tubes span the wings of the Cu-Beam™ suspended lights. Each tube contains a drop of water.
When the light is switched on, the heat generated by the LEDs turns the water inside the tubes into vapour. The vapour begins moving along the tubes due to the difference in pressure.
As soon the vapour reaches a cool area of the tube, it condenses back into water. Heat energy is dissipated evenly through a series of aluminium fins, which form the light's wings.
A copper wick draws the water back towards the LEDs via capillary action, and the cycle begins again.
Ideal for lighting task surfaces such as meeting tables and office desks.
Presenting
With more light upwards and less light downwards, the presenter’s screen can become the focal point.
Meeting
More light directed downwards illuminates the table, to aid note-taking and discussions across the table.
Out of hours
Full up-light provides a blanket of ambient illumination across the space – ideal for maintenance staff.
With adjustable one-touch shutters and a refelctive surface, Ricochet™ technology converts unwanted down-light into up-light, preventing light being wasted.
Closed shutters for up-light
Closing the adjustable shutters allows Ricochet™ technology to recover unwanted down-light. It reflects it upwards, to maximise lumen output and provide very high efficacy.
Open shutters for down-light
This allows more lumens to go downwards, to maximise downward light distribution onto the task plane.
Directs light onto a surface for powerful and efficient task lighting.
Single high-power LED
A chip on board LED provides a fixture light output of 5120 lm.
When mounted at 1.3m above the task area, Cu-Beam™ down-light projects 643lx evenly over an area of 3.2m x 1.6m.
Using a custom-engineered bubble optic lens, the Cu-Beam™ up-light casts a wide pool of light across the ceiling, creating ambient light.
Custom-engineered bubble optic lens
Projects an ultra-wide beam of light towards the ceiling, creating ambient light.
A chip on board LED provides a fixture light output of 7704 lm.
When mounted at 400mm from the ceiling, Cu-Beam™ up-light projects light evenly over an area of 4m wide.
Here, you can download manuals, installation guides and technical specifications.
